MSI MAG A1000GL PCIE5 II 1000W 80 Plus Gold Fully Modular Power Supply
JD159.000
The MSI MAG A1000GL PCIE5 II is a fully modular power supply designed for high-performance gaming PCs. With a 1000W capacity and 80 PLUS Gold certification, it offers optimal efficiency and stability. It is equipped with a 135 mm fluid dynamic bearing fan and supports ATX 3.1 and PCIe 5.1 standards, ensuring compatibility with the latest hardware. Its dual-color 16-pin PCIe connector and flat cables make for easy installation and improved cable management. Additionally, the power supply includes advanced protection features such as OVP, OCP, OPP, OTP, SCP, and UVP for reliable and safe operation.
Quantity
DESCRIPTION
Features:
• ATX 3.1 ready
• Native dual-color PCIe CEM 5.1 connector
• Supports NVIDIA GeForce RTX 40 series graphics cards
• Fully modular design, flat cables
• 80 PLUS Gold certified for high efficiency
• Active PFC design
• Protection with OVP / OCP / OPP / OTP / SCP / UVP
• 135 mm fluid dynamic bearing fan
• LLC half bridge topology with DC-to-DC module design
Specifications:
• Efficiency Rating: 80 PLUS Gold (up to 90%)
• Modular: Yes (fully modular)
• Fan Size: 135 mm
• Fan Bearing: Fluid Dynamic Bearing
• Dimensions (DxWxH): 150 x 150 x 86 mm
• PFC Type: Active PFC
• Input Voltage Range: 100-240V~
• Power Watt: 1000W
• Power Excursion: 2000W (up to 200% of the PSU's rated power for 100µs)
• Input Frequency Range: 50-60Hz
• Protection: OCP / OVP / OPP / OTP / SCP / UVP

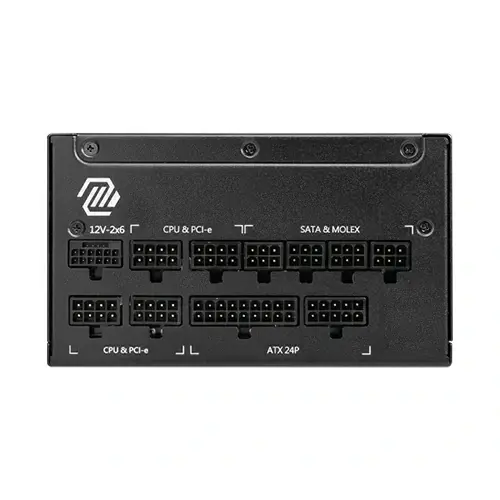

• ATX (24 pin): 1
• EPS (4+4 pin): 2
• PCI-E 5.1 (16 pin): 1 (600W)
• PCI-E (6+2 pin): 4
• SATA (15 pin): 12
• PERIPHERAL (4 pin): 4
• FDD (4 pin): 1
