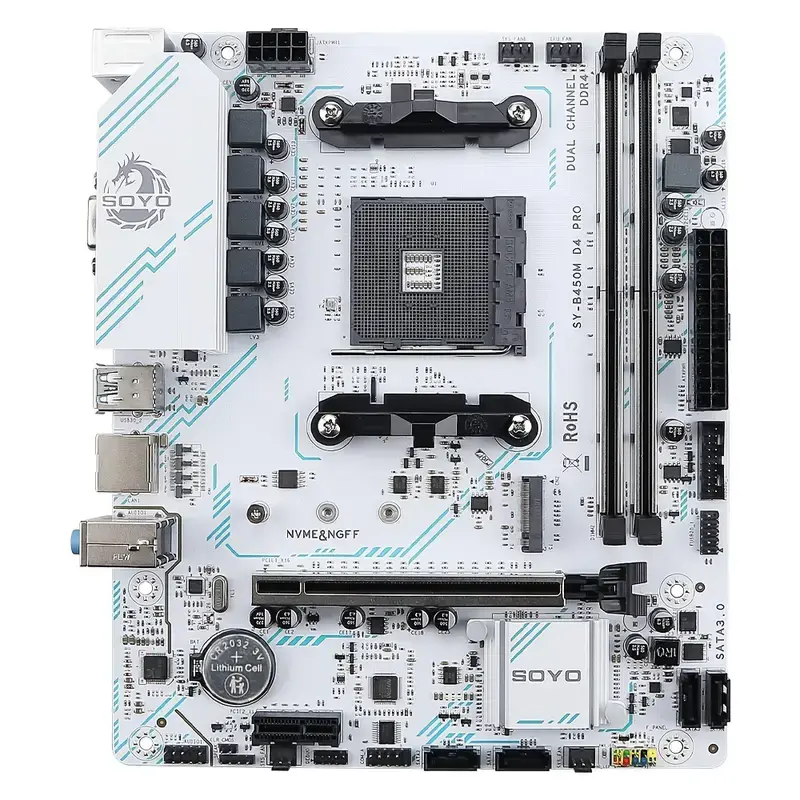

SOYO B450M AMD AM4 Ryzen 2000-5000, DDR4 UP TO 64GB Micro ATX M.2 Motherboards

Chipset: AMD B450 CPU: Supports AMD Ryzen 1st and 2nd generation, 3000, 3000G series/4000, 4000G series/5000, 5000G series processors (e.g., R5-1400, R5-2600, R7-3700X, R3-4100, R5-5600G, etc.) Memory: 2 x 288-pin DDR4 dual-channel; supports up to 64GB (32GB x 2) Supports 2133/2400/2666/3000/3200/3400/3600MHz (OC); actual memory frequency support depends on the processor type and memory module. Storage: 1 x M.2 slot (NVMe & NGFF);

supports 2280/2260/2242 storage devices (M.2: PCIe 3.0 x4 & SATA 3.0) 4 SATA 3.0 ports Display Ports: 1 VGA Network: 1 LAN1 (Realtek Gigabit Ethernet) PS/2: 1 PS/2 keyboard, 1 PS/2 mouse PCIE Slots: 1 PCIE1_X16 (PCIE 3.0 x16); 1 PCIE2_X1 (PCIE 2.0 x1); Audio: 1 Line Out; 1 Microphone In; 1 Line In; 1 JAUDIO1 internal header (Realtek 7.1 HD Audio) USB Ports: Rear Panel: 4 USB 3.0; Front Panel: 1 FUSB 2.0_1 header (expandable to 2 USB 2.0 ports); 1 FUSB 3.0_1 header (expandable to 2 USB 3.0 ports)

Function Pins: 1 F_PANEL; 1 4-pin CPU_FAN; 2 x 3-pin SYS_FAN; 1 x 4-pin SYS_FAN Power Input: 24-pin + 8-pin ATX power socket Dimensions: 180 x 216 mm M-ATX Other: 1 x Speaker header; 1 x Debug header; 1 x COM header (RS232); 1 x CLR_CMOS header
