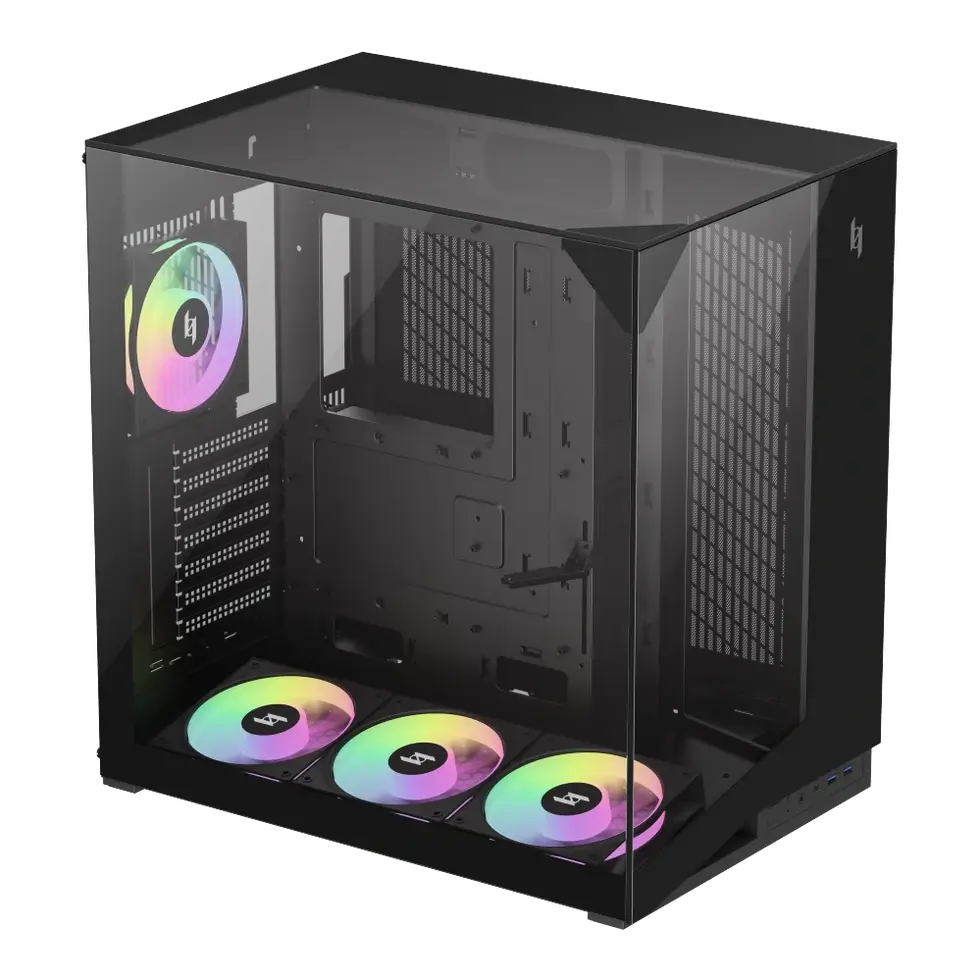

GAMEMAX NEX C56 VC BK 4 Fans Gaming Case Black
JOD 69.000
4mm tempered glass on front, side, and top delivering a panoramic view.
•12° inclined bottom and right-side intake fans for optimized airflow and faster heat dissipation.
•Dual-chamber layout with support for ATX motherboards, 425mm GPUs, 182mm CPU coolers, 220mm PSUs, dual 360mm radiators, and 2×HDD + 2×SSD.
•Cooling capacity: Up to 7×120mm or 6×120mm + 1×140mm; includes 4×120mm ARGB/PWM fans.
•I/O panel with USB-C (USB 3.2 Gen2x2) and 2× USB-A (USB 3.2 Gen1).
•Vertical GPU installation supported without blocking bottom airflow.
•Included height-adjustable GPU support bracket to prevent sagging.
•Magnetic dust filters on bottom, and right side.
Quantity
Only 2 left in stock
DESCRIPTION
|
Form Factor: |
Mid Tower |
|
|
Chassis: |
SPCC :0.6mm |
|
|
PSU Form Factor |
Bottom/ATX |
|
|
M/B Form Factor: |
ATX、M-ATX、ITX |
|
|
Front Panel: |
Tempered Glass |
|
|
Top Panel: |
Tempered Glass |
|
|
Side Panel: |
Left: |
Tempered Glass |
|
Right: |
Metal cover |
|
|
External Drive Bay(s): |
5.25”(ODD): |
*0 |
|
3.5”: |
*0 |
|
|
Internal Drive Bay(s): |
3.5" (HDD): |
* 2 |
|
2.5" (SSD): |
*2 |
|
|
2*3.5HDD+2*2.5SSD |
||
|
I/O: |
Buttons: |
*1 (POWER) |
|
USB 2.0 Port(s): |
*0 |
|
|
USB3.2 Gen1 Type A Port(s) |
*2 |
|
|
USB3.2 Gen2 Type C Port(s) |
*1 |
|
|
Audio Support: |
*1(Combo AUDIO) |
|
|
Cooling Fan Support: |
Front: |
N/A |
|
Top: |
N/A |
|
|
Rear: |
1x120mm (NEX F120A) |
|
|
Bottom: |
3x120mm (NEX F120RA ) |
|
|
M/B Cover： |
*3x120mm （None） |
|
|
Water Cooling Support (Radiator Size): |
Front: |
N/A |
|
Top: |
N/A |
|
|
Rear: |
120mm |
|
|
Bottom: |
120mm, 240mm, 360mm |
|
|
M/B Cover： |
120mm, 240mm, 360mm |
|
|
Dust Cover: |
Dust mesh on the bottom/right side |
|
|
Slots: |
*7 |
|
|
Carton & Logo: |
GAMEMAX |
|
|
Dimensions: |
Chassis: |
(L)430*(W)300*(H)448mm |
|
Full Case (Inc Fascia): |
(L)446*(W)300*(H)448mm |
|
|
Carton: |
(L)504*(W)373*(H)527mm |
|
|
Net Weight(kg): |
||
|
Gross Weight(kg): |
||
|
VGA Support: |
up to 425mm |
|
|
Vertical Graphics Support |
Yes |
|
|
CPU Cooler Height: |
up to 182mm |
|
|
SPS Length: |
up to 220mm |
|
|
Cable Management Depth: |
95mm |
