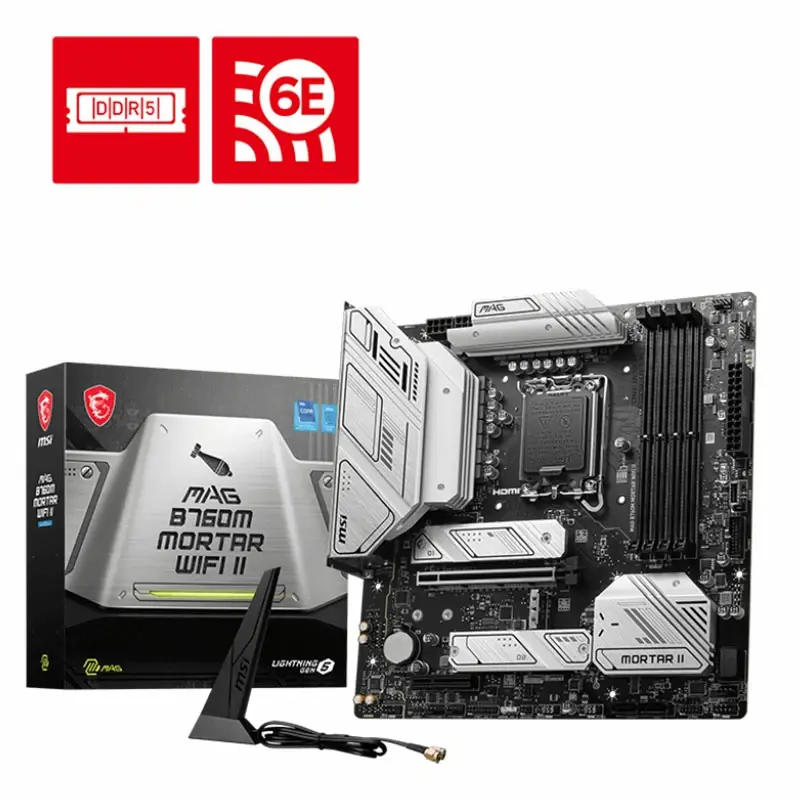

MSI MAG B760M Mortar WIFI II DDR5 LGA 1700 Gaming Motherboard

Price

JD159.000

  • Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
  • Supports DDR5 Memory, up to 7800+(OC) MHz
  • Enhanced Power Design: 12+1+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost
  • Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2 x2
  • Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
  • Audio Boost: Reward your ears with studio grade sound
  • High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material

Quantity

Only 1 left in stock

DESCRIPTION

Platform INTEL
Socket LGA1700
Cpu Type 14th Gen, 13th Gen, 12th Gen, Pentium Gold, Celeron Processors
Chipset B760
Memory Speed up to 7800+
Max Memory Support 256 GB
Supported Memory Type DDR5
Channel Supported Dual Channel
Memory Feature Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel Extreme Memory Profile
Graphics Port 1x HDMI, 1x DisplayPort
Expansion Slots 1x PCI-E x16 slot
1x PCI-E x4 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x4 (From Chipset)
Wireless Networking WiFi 6E,Bluetooth 5.3
Back Panel I/O Ports DisplayPort 1.4
USB 3.2 Gen 2 10Gbps Type-A
2.5G LAN Port
Wi-Fi / Bluetooth
HD Audio Connectors
USB 2.0
HDMI 2.1 Port
USB 3.2 Gen 2x2 20Gbps Type-C
USB 3.2 Gen 2 10Gbps Type-A
Internal I/O Connector 1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
4x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Tuning Controller connector(JDASH)
2x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
1x USB4 card connector (JTBT_U4_1, supports RTD3)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
1x USB 10Gbps Type C ports
Form Factor Micro-ATX
